Mooring
Innovative mooring lines for MegaYachts
The Gottifredi Maffioli catalogue is also enriched by a full selection of products, specifically designed for mooring and anchoring purposes. Evodock, Maxidock, Nylon Braid, Super 12, Corda Poliestere AT and Fenderline offer you the chance to choose among a variety of products with different construction and materials, but all characterised by high strength, very good elasticity, handling comfort and softness even after prolonged use.
Extremly light, safe and elegant.

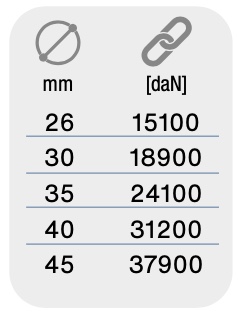

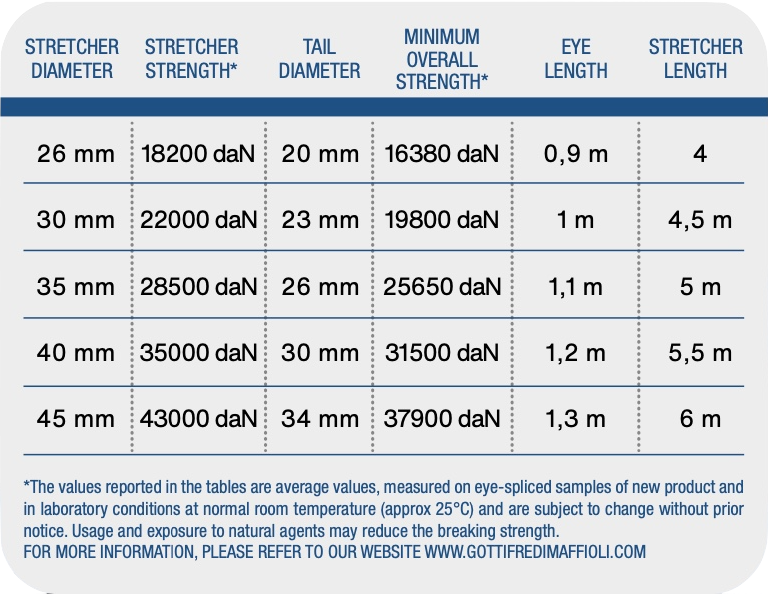

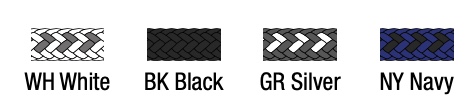

EVODOCK is the ultimate solution for innovative mooring lines for MegaYachts, a tapered single piece with two different sections: H.T. Nylon for stretch and Dyneema® for high breaking loads. Thanks to its unique construction with blended materials, we have developed a Dyneema® mooring line that does not require any additional stretcher or tail. These new lines are extremly light, safe and elegant, ideal for the world largest MegaYachts.
- Double Braid
- Core: Bio Based Dyneema® + H.T. Polyamide
- Cover: H.T. Polyester + Bio Based Dyneema®
- Recommended for: Mooring
- Diameters: 26 – 45 mm – Custom made only
Good shock absorber / floating.
- Double Braid
- Core: H.T. Polyamide / Polypropylene blend
- Cover: High visibility Polypropylene + reflective tracers
- Recommended for: Towing, mooring
- Diameters: 14 – 18 mm

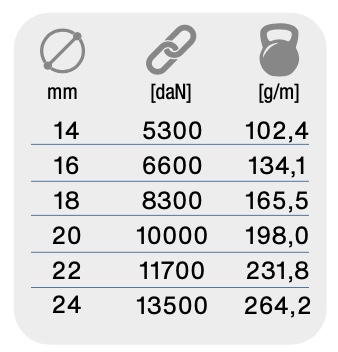

High load, high visibility, floating.
- Double Braid
- Core: Bio Based Dyneema®/Polypropylene blend
- Cover: Bio Based Dyneema® + Polypropylene + reflective tracers
- Recommended for: Mooring, use with a shock absorber
- Diameters: 14 – 24 mm (larger diameters on demand)
Strength, very good abrasion resistance, soft even after prolonged use.
- Double Braid
- Core: H.T. Polyamide
- Cover: H.T. Polyester
- Recommended for: Mooring
- Diameters: 12 – 40 mm (larger diameters on demand)

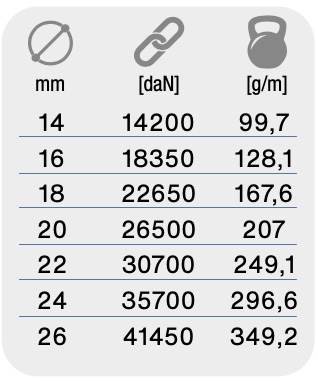

Waterproof and buoyant, it is very strong and abrasion resistant.
- Single Braid
- Core: Polyurethane coated Bio Based Dyneema® with floating fiber inserts
- Recommended for: High performance tow lines, warps and trawl lines
- Diameters: 14 – 26 mm (larger diameters on demand)

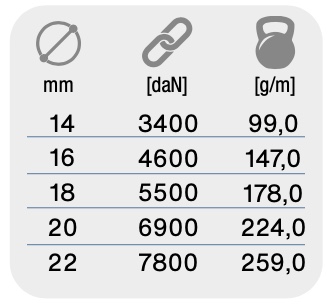

Flexibility, elasticity.
- Single Braid
- Core: H.T. Polyamide
- Recommended for: Mooring
- Diameters: 14 – 22 mm (larger diameters on demand)

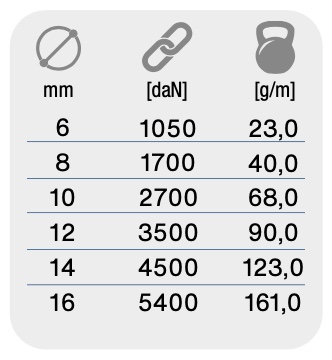

Elasticity, ease of handling, good abrasion resistance.
- Double Braid
- Core: H.T. Polyamide
- Cover: H.T. Polyamide
- Recommended for: Mooring
- Diameters: 6 – 16 mm (larger diameters on demand)

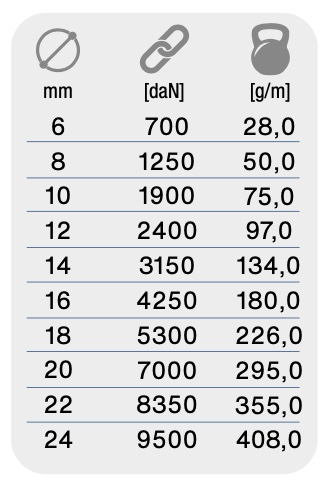

Very good abrasion resistance.
- Twisted rope
- Core: H.T. Polyester
- Recommended for: Mooring
- Diameters: 6 – 24 mm (larger diameters on demand)
Flexibility, softness.
- Single Braid
- Core: H.T. Polyester
- Recommended for: Fenderline
- Diameters: M=8mm, L=12mm, XL=14mm (larger diameters on demand)
Useful accessories
D-14 and D-16 scissors
D-14 and D-16 scissors are specially designed for cutting Dyneema fibers. The blades of these scissors are laser cut and have an excellent grinding profile.
Set 4 GM needles
Fid set of n. 4 needles for splicing ropes to mm 4 – 10.
Sailmaker’s sewing needles
Set n. 5 needles (13-19)
D-Splicer set
The D-SPLICER needle is the ultimate solution for splicing thin yachting ropes.The D-Splicer works very well for lines thinner than 5 mm diameter and in any other situation where existing fids do not work.
Swedish fids
Stainless steel with smooth wooden handle. Dimensions: S - M
F-series Needles
The needles are made from stainless steel and have a fixed handle for easy pulling. The needles are available in four different sizes: 1.0 / 1.5 mm / 2.0 mm / 2.5 mm
Sailmaker’s sewing needles assorted tube of 10
Set n. 10 needles (14-18)
Heat knife
Hand helt heat knife including blade – Working voltage: 220 V – Power: 60 W
Palm
Palm ideal for whipping and stitching even the hardest ropes.
